Radial Type Drilling Machine
Home
→
Radial Type Drilling Machine

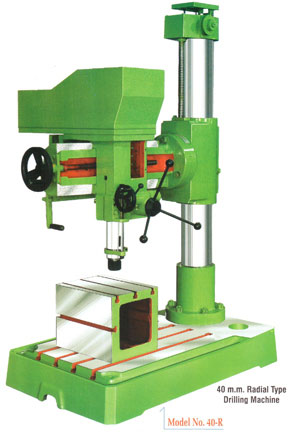

40 MM Radial Type Drilling Machine Model 40 R
Model No.
40 R & 40 R.A.
Drilling capacity in mild steel
40
No.of spindle speed 8
50 to 1735
working area of base
870 * 760
Dia of column
165
Dia of RAM
78
Spindle travel
260
Spindle nose
M.T.4
Max. Min. Distance spindle nose to base
925 to 230
Max. Distance spindle nose to base
620
Max. Min. Distance spindle nose to column
875 * 360
Size of Box Table
305 * 305 * 380
Size of base (L*W*H)
760 * 1290 * 190
Overall height of machine
2000
Spindle feed by
Hand. Star Lever & Worm
Drill Head motor
1.5 HP, 960 RPM
Elevating motor
0.5 HP, 1440 RPM
Net weight
900 kgs.
V. Belt
B-46
Lifting Vee Belt
A 23
Number of Autofeed
05. (40-R.A.)
25 mm Radial type Drilling Machine model 25 R
Model No.
25 R
Drilling capacity in mild steel
25
No.of spindle speed 8
90 to 2600
working area of base
725 * 600
Dia of column
127
Dia of RAM
72
Spindle travel
225
Spindle nose
M.T.3
Max. Min. Distance spindle nose to base
750 to 175
Max. Distance spindle nose to base
570
Max. Min. Distance spindle nose to column
665 * 270
Size of Box Table
205 * 205 * 285
Size of base (L*W*H)
600 * 1000 * 150
Overall height of machine
1420
Spindle feed by
Hand. Star Lever & Worm
Drill Head motor
1 HP, 1440 RPM
Elevating motor
0.5 HP, 1440 RPM
Net weight
485 kgs.
V. Belt
B-40
Lifting Vee Belt
A 20
Number of Autofeed
-

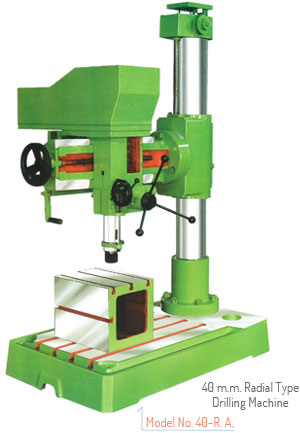

40 mm Radial type Drilling Machine model 40 R.A.
Model No.
40 R & 40 R.A.
Drilling capacity in mild steel
40
No.of spindle speed 8
50 to 1735
working area of base
870 * 760
Dia of column
165
Dia of RAM
78
Spindle travel
260
Spindle nose
M.T.4
Max. Min. Distance spindle nose to base
925 to 230
Max. Distance spindle nose to base
620
Max. Min. Distance spindle nose to column
875 * 360
Size of Box Table
305 * 305 * 380
Size of base (L*W*H)
760 * 1290 * 190
Overall height of machine
2000
Spindle feed by
Hand. Star Lever & Worm
Drill Head motor
1.5 HP, 960 RPM
Elevating motor
0.5 HP, 1440 RPM
Net weight
900 kgs.
V. Belt
B-46
Lifting Vee Belt
A 23
Number of Autofeed
05. (40-R.A.)

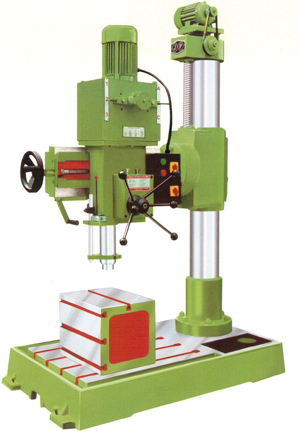

0 mm Radial type Drilling Machine All Geared Auto Feed model 40 R.A.A
Model No.
40 R.A.A.
Drilling capacity in mild steel
40
No.of spindle speed 9
80 to 1500
working area of base
870 * 760
Dia of RAM
78
Spindle travel
260
Spindle nose
M.T.4
Max. Min. Distance spindle nose to base
925 to 230
Max. Distance spindle nose to base
620
Max. Min. Distance spindle nose to column
875 * 360
Size of Box Table
305 * 305 * 380
Size of base (L*W*H)
760 * 1290 * 190
Overall height of machine
2000
Spindle feed by
hand. & Auto feed
Drill Head motor
2 HP, RPM 1440
Elevating motor
0.5 HP, 1440 RPM
Net weight
900 kgs.
Lifting Vee Belt
A 23
Number of Autofeed
0.05
Welding Consumables
Model No.
32 R
Drilling capacity in mild steel
32mm
No.of spindle speed 8
80 to 2600
working area of base
790 * 690mm
Dia of column
150mm
Dia of RAM
78mm
Spindle travel
260mm
Spindle nose
M.T.4
Max. Min. Distance spindle nose to base
900 to 170mm
Max. Distance spindle nose to base
650mm
Max. Min. Distance spindle nose to column
800 * 350mm
Size of Box Table
255 * 255 * 320mm
Size of base (L*W*H)
1180 * 705 * 140mm
Overall height of machine
1950mm
Spindle feed by
Hand. Star Lever & Worm
Drill Head motor
1.5 H.P. (1440 R.P.M.)
Elevating motor
0.5 H.P. (1440 R.P.M.)
Net weight
700 kgs.
V. Belt
B-47
Lifting Vee Belt
A-22
