Pillar Type Drilling Machine
Home
→
Pillar Type Drilling Machine

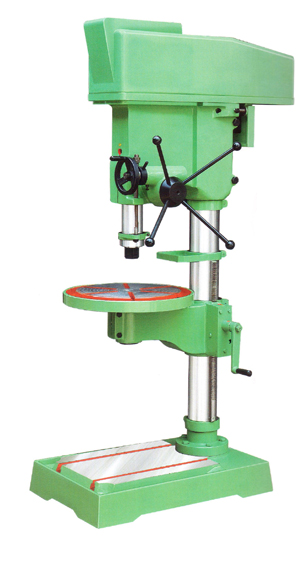

20, 25 & 32 mm Pillar type drilling machine model 20 P, 25 P & 32 P
Model No.
25 P
32 P
Capacity in mild steel
25
32
No.of spindle speeds
104 to 2651
4+4 =8
80 to 2600
4+4 =8
Number of auto feed
-
-
Spindle center to column
206
260
Max. travel of spindle
150
160
Max. dist. spindle nose to table
710
810
Max. dist. spindle nose to base
950
1120
Spindle nose Bore fitting
M.T.3
M.T.3
Diameter of table
336
385
Diameter of RAM
72
72
Base area machined
225 * 250
350 * 390
Diameter of column
90
108
Total height of the Machine
1606
1778
H.P. of the motor
1
1.5
RPM
1440
1440
Vee Belt
B 46
B 55
swing
-
-
End mill cap
-
-
Net weight
190 Kgs.
300 Kgs.
38 mm Pillar type Drilling Machine model 38 P
Model No.
25 P
Capacity in mild steel
38
No.of spindle speeds
50 to 1735
4+4 =8
Number of auto feed
-
Spindle center to column
321
Max. travel of spindle
250
Max. dist. spindle nose to table
600
Max. dist. spindle nose to base
1010
Spindle nose Bore fitting
M.T.4
Diameter of table
450 * 450
Diameter of RAM
78
Base area machined
360 * 400
Diameter of column
120
Total height of the Machine
1870
H.P. of the motor
2
RPM
960
Vee Belt
B 64
swing
-
End mill cap
-
Net weight
385 Kgs

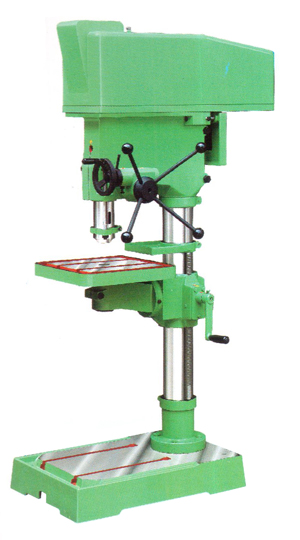

38 mm Pillar type Drilling Machine with Auto feed model 38 P.A.
Model No.
38 P.A.
Capacity in mild steel
38
No.of spindle speeds
80 to 2600
4+4 = 8
Number of auto feed
.05
Spindle center to column
260
Max. travel of spindle
250
Max. dist. spindle nose to table
740
Max. dist. spindle nose to base
1050
Spindle nose Bore fitting
M.T.4
Diameter of table
385
Diameter of RAM
78
Base area machined
350 * 390
Diameter of column
108
Total height of the Machine
1778
H.P. of the motor
1.5
RPM
1440
Vee Belt
B 55
swing
-
End mill cap
-
Net weight
350 Kgs.
40 mm Pillar type Drilling Machine Heavy duty model 40 P
Model No.
40 P
Capacity in mild steel
40
No.of spindle speeds
80 * 1975
4+4 =8
Number of auto feed
-
Spindle center to column
316
Max. travel of spindle
250
Max. dist. spindle nose to table
685
Max. dist. spindle nose to base
1065
Spindle nose Bore fitting
M.T.4
Diameter of table
545
Diameter of RAM
90
Base area machined
450 * 600
Diameter of column
130
Total height of the Machine
1814
H.P. of the motor
2
RPM
1440
Vee Belt
C 70
swing
-
End mill cap
-
Net weight
550 Kgs.

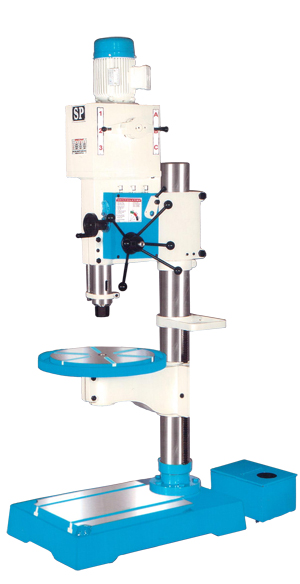

40 mm All Geared with Auto Feed Drilling Machine with model 40 P.A.A
Model No.
40 P.A.A.
Drilling Capacity in mild steel
40
No.of spindle speeds - 9
95-1500
Number of auto feed
2
Spindle center to column
316
Max. travel of spindle
250
Max. dist. spindle nose to table
785
Max. dist. spindle nose to base
1150
Spindle nose Bore fitting
M.T.4
Diameter of table
545
Diameter of RAM
78
Base area machined
450 * 600
Diameter of column
130
Total height of the Machine
2100
H.P. of the motor
1.5
RPM
960
Net weight
550 Kgs.

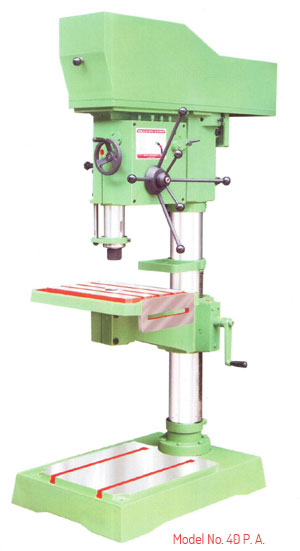

40 mm Pillar type Drilling Machine with Auto Feed model 40 P.A.
Model No.
40 P.A.
Capacity in mild steel
40
No.of spindle speeds
50 to 1225
3+3 =6
Number of auto feed
.05.10.15
Spindle center to column
385
Max. travel of spindle
250
Max. dist. spindle nose to table
685
Max. dist. spindle nose to base
1117
Spindle nose Bore fitting
M.T.4
Diameter of table
450 * 610
Diameter of RAM
90
Base area machined
700 * 977
Diameter of column
150
Total height of the Machine
2130
H.P. of the motor
3
RPM
960
Vee Belt
B.80 2, Nos.
swing
-
End mill cap
-
Net weight
690 Kgs.

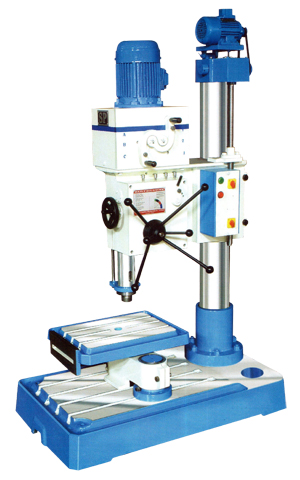

50 mm Pillar type Drilling Machine All Geared with Auto Feed model 50 P.A.A
Model No.
50 P.A.A.
Capacity in mild steel
50
No.of spindle speeds
50 to 1260
9
Number of auto feed
.05.10.15
Spindle center to column
460
Max. travel of spindle
260
Max. dist. spindle nose to table
630
Max. dist. spindle nose to base
900
Spindle nose Bore fitting
M.T.5
Diameter of table
625 * 465
Diameter of RAM
90
Base area machined
760 * 1000
Diameter of column
165
Total height of the Machine
-
H.P. of the motor
3
RPM
960
Vee Belt
-
swing
-
End mill cap
-
Net weight
970 kgs.
